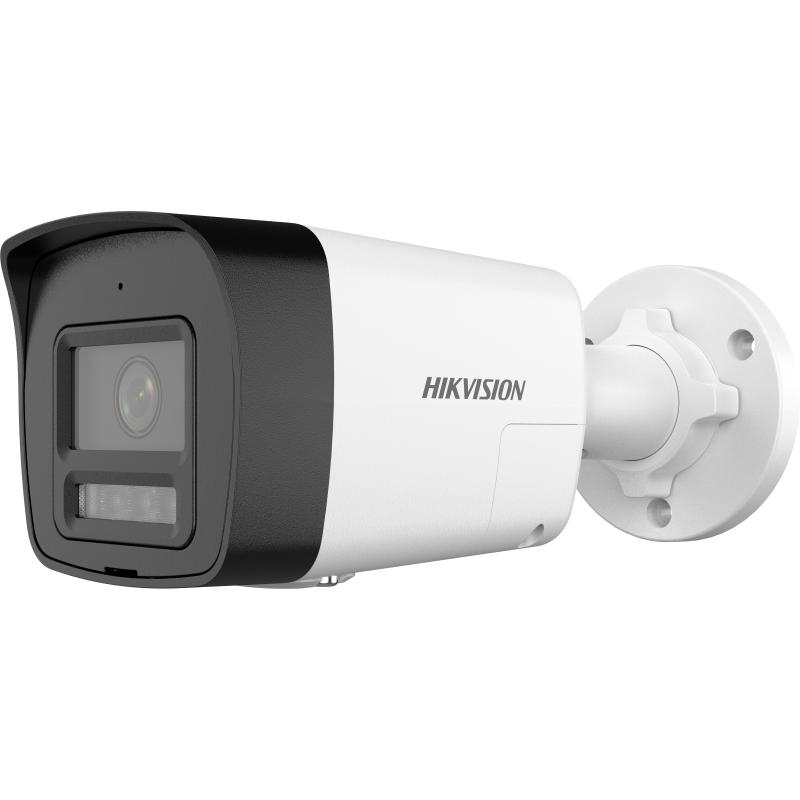

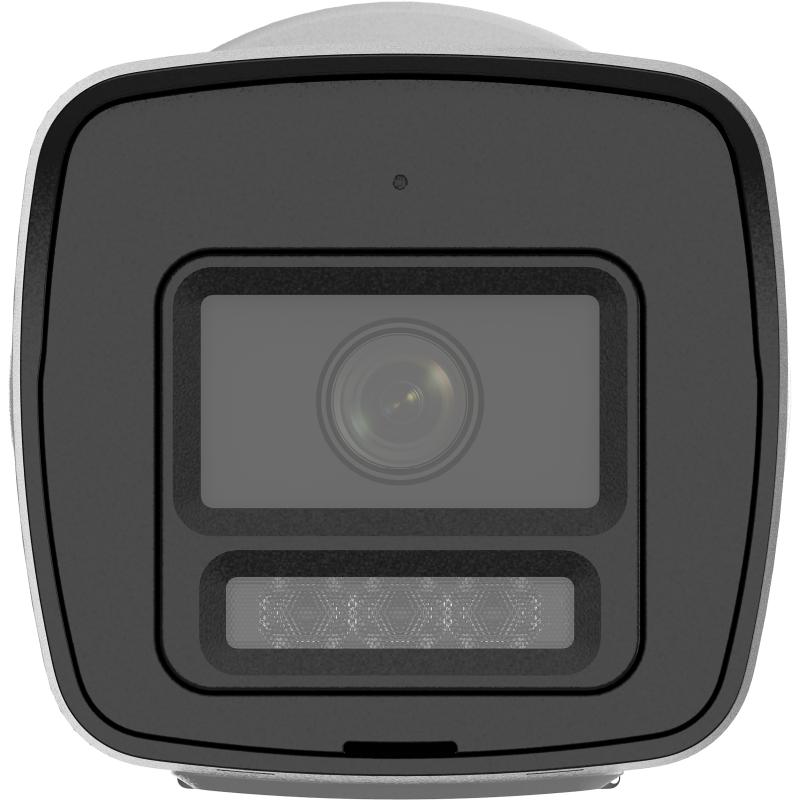

DS-2CD1023G2-LIUF/SL Câmera bullet de rede, fixa, com luz híbrida inteligente de 2 MP

Descrição

• Câmera
• Sensor de imagem1/2.9″ Progressive Scan CMOS
• Resolução máx.1920 × 1080
• Iluminação mínimaColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Tempo do obturador1/3 s to 1/100,000 s
• Dia e noiteIR cut filter
• Ajuste de ÂnguloPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

• Lentes
• Tipo de lenteFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

  4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

• Montagem da lenteM12
• Iris TypeFixed
• AberturaF1.6

• DORI
• DORI

  2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

  4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

• luminador
• Tipo de luz suplementarIR,White Light
• Faixa de luz suplementarUp to 30 m
• Luz complementar inteligenteYes
• IR Wavelength850 nm

• Vídeo
• Convencional

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Subfluxo

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Compressão de vídeo

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Taxa de bits de vídeo32 Kbps to 8 Mbps
• Tipo H.264Baseline Profile,Main Profile,High Profile
• Tipo H.265Main Profile
• Controle da taxa de bitsCBR,VBR
• Região de interesse (ROI)1 fixed region for main stream

• Áudio
• Tipo de áudioMono sound
• Taxa de amostragem de áudio8 kHz/16 kHz
• Filtragem de ruído ambienteYes
• Compressão de áudioG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Taxa de bits de áudio64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

• Rede
• SegurançaPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Visualização ao vivo simultâneaUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
• ProtocolosTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Usuário/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect
• Navegador da web

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Imagem
• Ampla Faixa Dinâmica (WDR)Digital WDR
• SNR≥ 52 dB
• Switch Dia/NoiteDay,Night,Auto,Schedule
• Aprimoramento da imagemBLC,HLC,3D DNR
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Máscara de privacidade4 programmable rectangle privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Armazenamento a bordo

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Microfone integradoYes,1 built-in microphone
• Alto-falante embutidoMax. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
• Reset KeyYes

• Evento
• Eventos básicosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light

• Geral
• Alimentação

  12 VDC ± 25%, 0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 9 W

• MaterialMetal & Plastic
• Dimensões179 mm × 67.4 mm × 69.1 mm (7.1″ × 2.7″ × 2.7″)
• Dimensões do pacote216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
• PesoApprox. 315 g (0.7 lb.)
• Com peso do pacoteApprox. 520 g (1.1 lb.)
• Condições de armazenamento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Condições de inicialização e operação-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• IdiomaEnglish, Ukrainian
• Função geralHeartbeat,anti-banding,mirror,password protection,password reset via email
• Luz intermitenteYes

• Aprovação
• EMC

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7

• Segurança

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Ambiente

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProteçãoIP67: IEC 60529-2013
